Witschi Chronoscope X1 with ChronoMaster PRO (manual)

Product information "Witschi Chronoscope X1 with ChronoMaster PRO (manual)"

The latest technology for testing mechanical watches

The Chronoscope X1 is a measuring instrument for measuring the impact noise of mechanical watches. Automated measurement in the 10 main test positions is user-friendly and efficient with the X1. The instrument is made of first-class materials and is excellently finished. The 10.4" color touch screen is easy to operate and provides a high quality and high contrast display. The screen is framed with fine aluminum and stands on an adjustable base. The Chronoscope X1 can be fully integrated into the WiCoTRACE central test parameter and results management system, benefiting from a traceable and productive measurement process. And it can be combined with any of the following three measurement sensors as needed: ChronoMaster Pro, Micromat C or Micromat X.

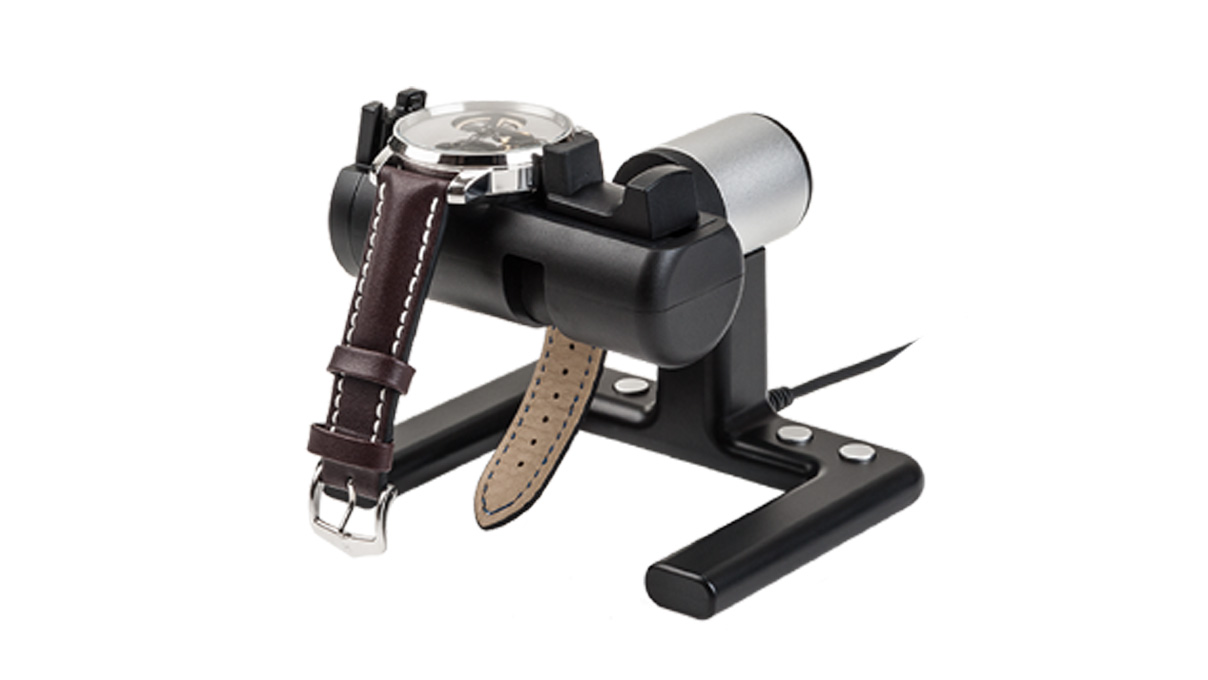

The set consists of the X1 terminal and the ChronoMaster Pro intelligent compact microphone. Thanks to its ergonomic and compact design, this device is user-friendly and versatile.

With built-in measurement electronics, the device can be connected to a Windows PC or tablet via a USB type A interface.

Simultaneous testing in combination with Micromat C automatic microphone is possible. The convenient operation of the display software via the four programmable keys on the ChronoMaster round off this "plug & play" device. With the powerful Chronoscope Service software for Windows PC and tablet, test layer sequences can be evaluated in various display modes. In addition, the ChronoMaster is fully integrated into the WiCoTRACE central test parameter and results management system.

The software offers you user-specific, individual functionalities.

Continuous diagram recording: selectable integration time 2 - 240 s and adjustable zoom 1x - 16x
Display mode Vario: measuring time adjustable from 4 s - 99:59:58 h
Automatic position recognition of the 6 main layers as well as 5 additional layers
Guided sequence mode, adjustable 1 - 10 test layers
Safe holding even of large watches
Exact rastering of the test layers in 45° steps
Convenient operation of the display software "Chronoscope Service" thanks to built-in operating keys

The ChronoMaster Pro has the following additional result display / display modes (compared to the standard ChronoMaster):

Trace display mode
Measuring time adjustable from 4 s - 99:59:58 h
Adjustable zoom: 1x - 8x
Display mode Sequence
Stabilization time adjustable from 2 s - 2 min
Measuring time adjustable from 4 s - 10 min
Measuring cycle adjustable 1 - 10 test layers
Display mode Polar
Rotation time 24 - 240 s
Direction of rotation clockwise or counterclockwise
Measuring time adjustable from 4 s - 1 h
Scope display mode
Adjustable time scale 20, 200, 400 ms
Averaging of impact noise

Details

Dimensions (H x W x D): 125,0 x 115,0 x 215,0 mm
Product area: Equipment & machines
Properties: ChronoMaster PRO, Display, For testing, Manual, Multilingual
Reference: ChronoMaster PRO, Chronoscope X1
Shipping information: Item with volume (individual freight calculation)
Size: 125 x 115 x 215 mm
Suitable for: Mechanical movement, Watches
Type: Testing device
Weight (kg): 5.4
