Bergeon 31300 Seitz jewelling tool with all accessories

Product information "Bergeon 31300 Seitz jewelling tool with all accessories"

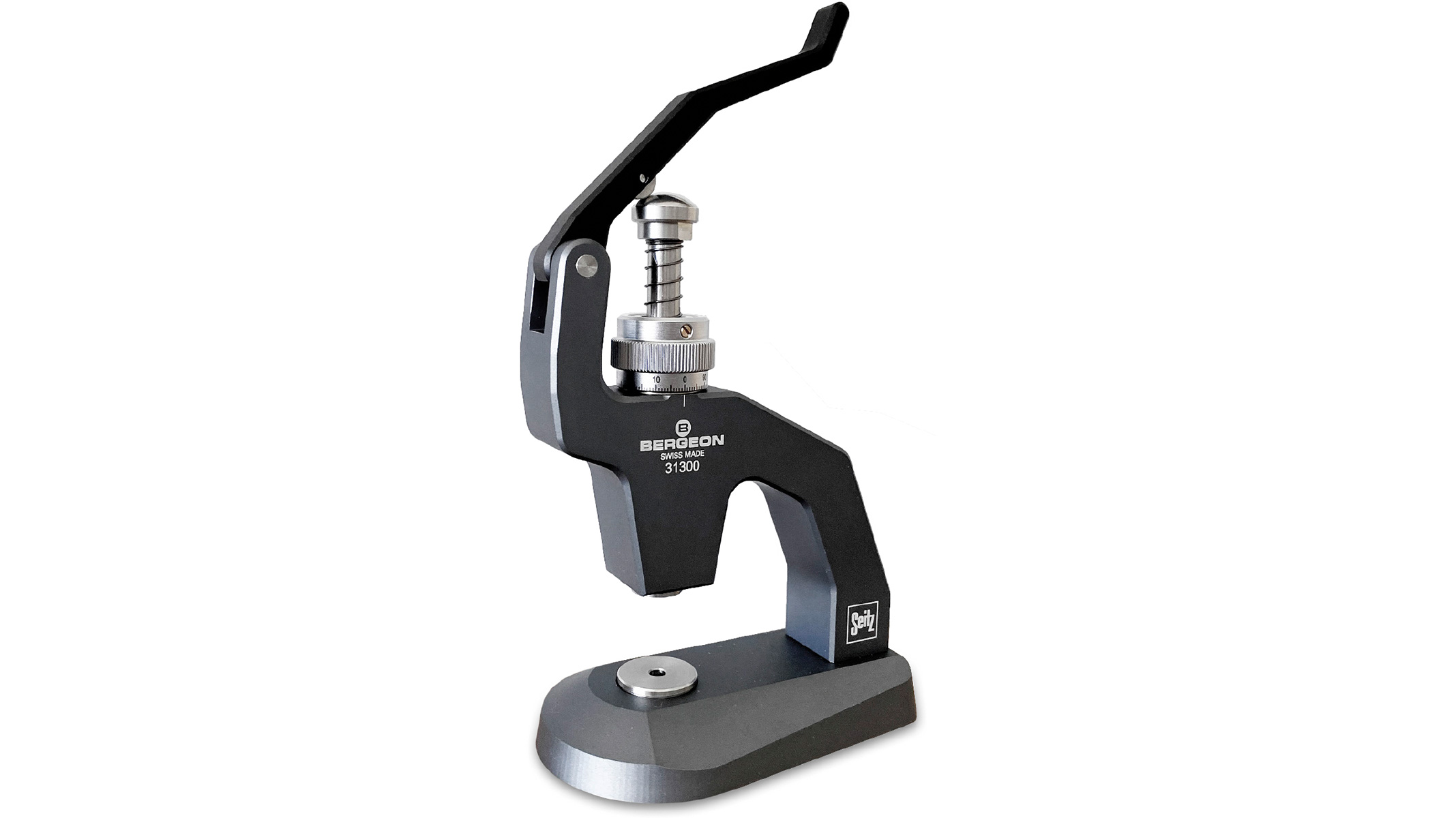

This watchmaker's tool is used for pressing in jewel bearings. The tool consists of an anodized aluminum frame with a lever for direct power transmission. The frame has a guide with a micrometer for precise adjustment of the pressing depth.

Usage

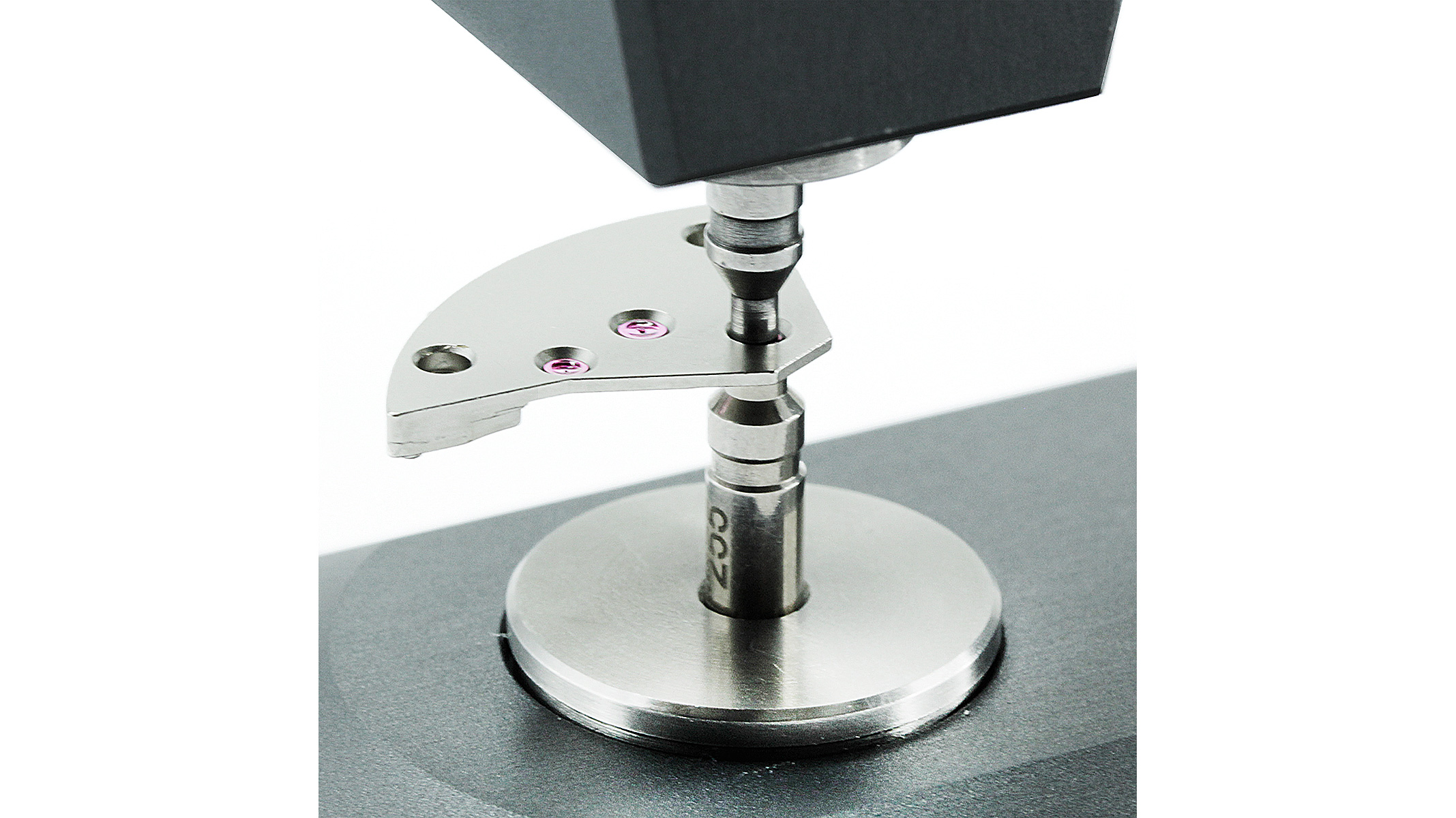

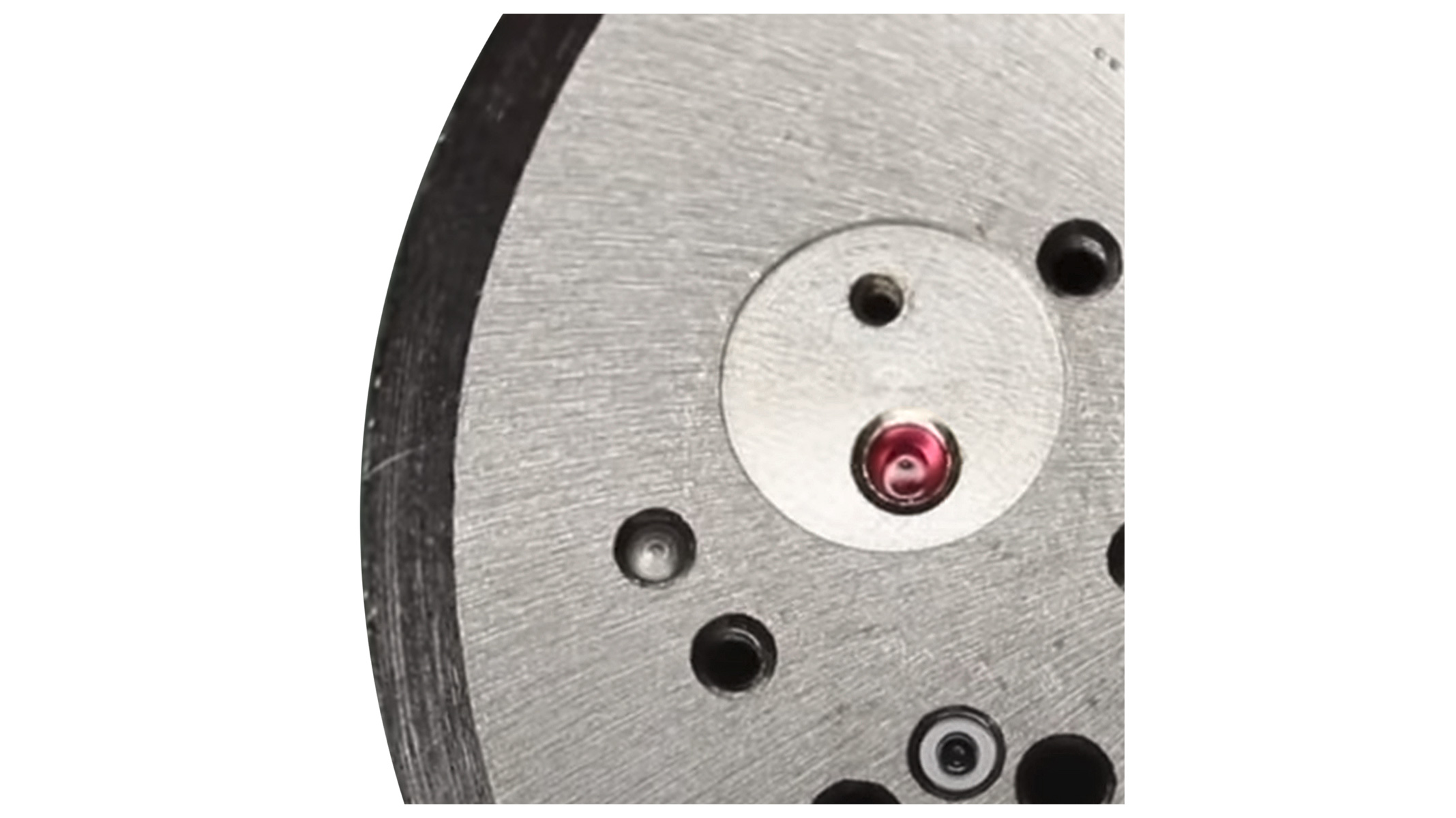

You can either insert a pressing punch or rotatable reamer holder with various reamers into this guide. These are uses to burnish the hole to the exact diameter required to pressure-fit the jewel. Using the micrometer, take a recording of how deep the old jewel was set before you remove it. The new jewel is pressed into the base plate by use of one of the pump pushers.

Scope of delivery

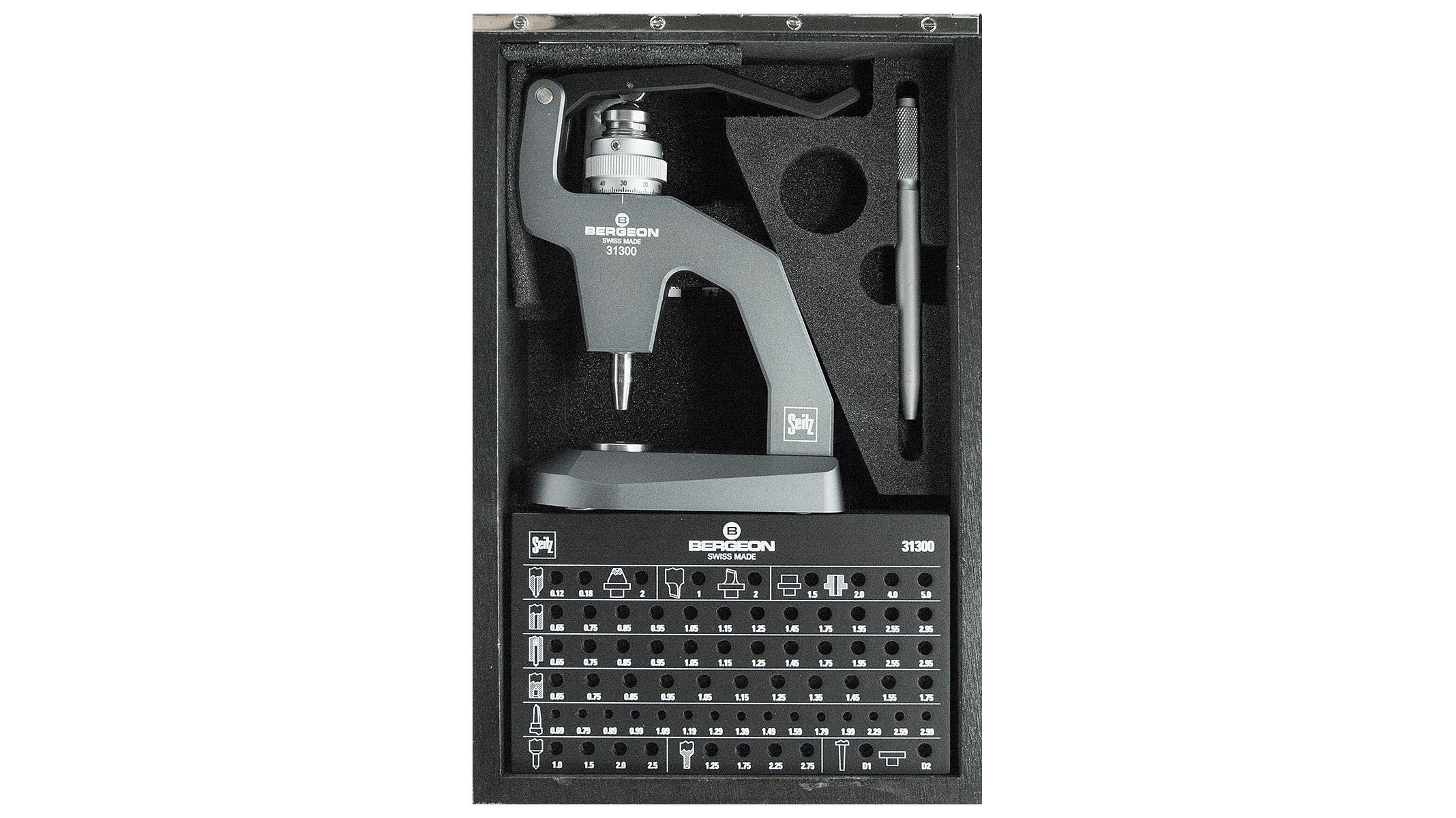

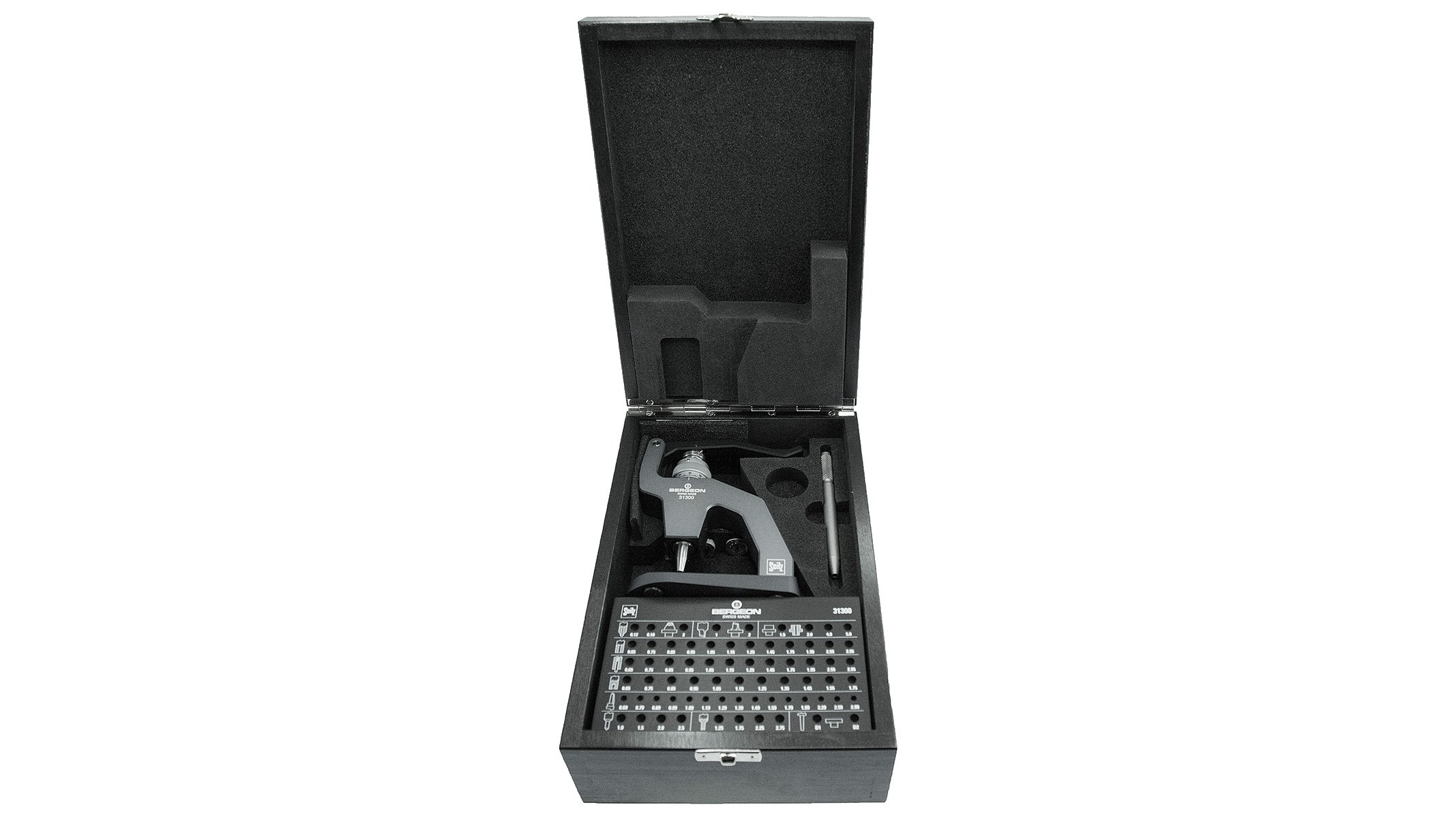

The numerous accessories are neatly arranged in a practical wooden box, ready to hand.

Frame with lever, micrometer and non-slip base

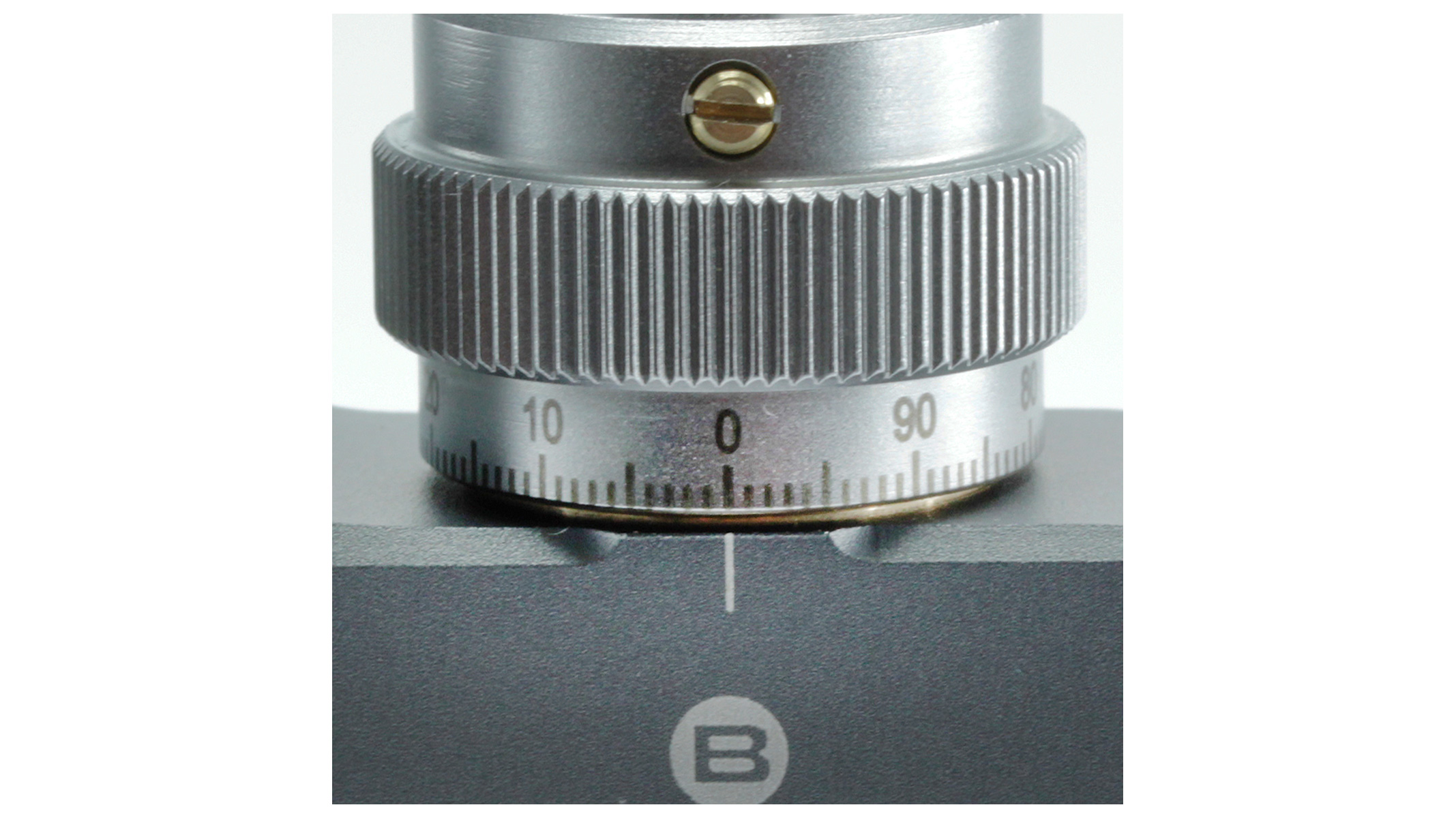

Micrometer with 0,01 mm graduation
Reamer holder
15 reamers from Ø 0.69 - 2.99 mm
12 press punches, flat from Ø 0.65 - 2.95 mm
12 press punches, concave from Ø 0.65 - 1.75 mm
4 anvils 1,4 / 2 / 4 / 5 mm
4 punches for narrowing the hour hand holes
4 collapsing punches
3 anchor setting tools
2 quarter tube notching tools
Insert plate
Peg chuck for screw nut
Wooden case

Details

Working height: 24 mm
Removable spindle with low frictional resistance thanks to bronze bearings

Details

Dimensions (H x W x D): 185,0 x 60,0 x 100,0 mm
Material: Metal
Product area: Rack presses & micrometers
Properties: With accessories
Reference: 31300
Typ: Tools
Weight (kg): 1.9
