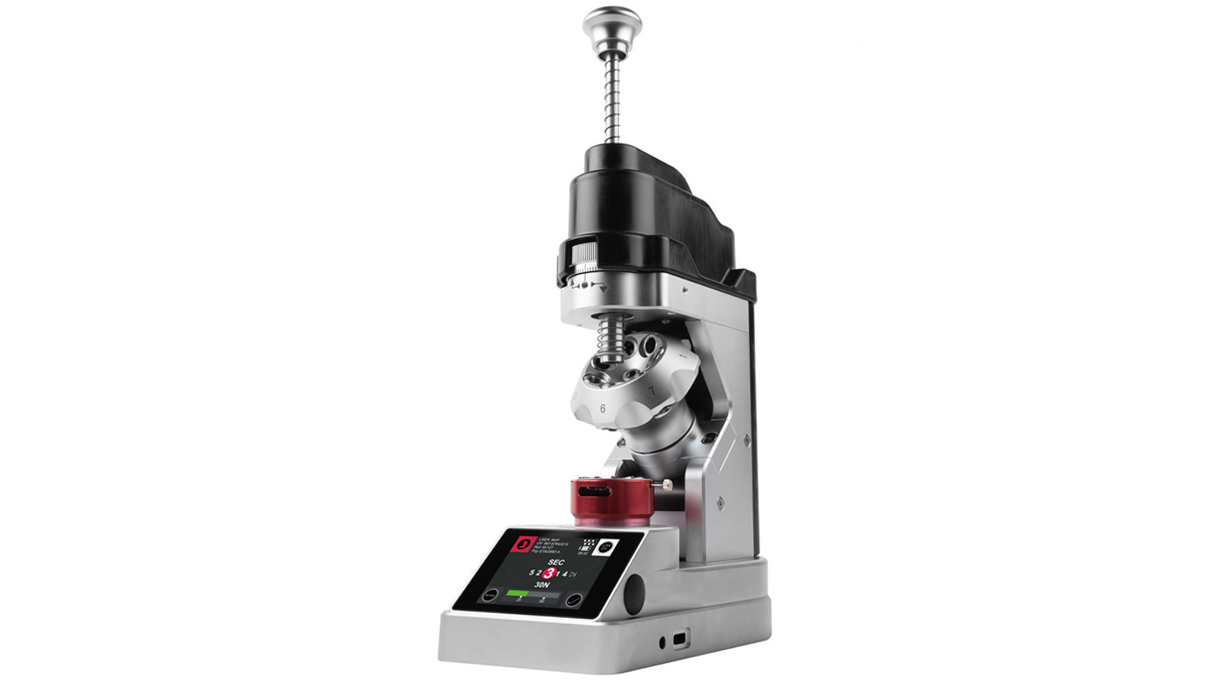

VOH Pavix watch test device with complete control at hand-fitting

Product information "VOH Pavix watch test device with complete control at hand-fitting"

The intelligent and universal VOH PAViX hand-setting device adapts wireless, flexible and ergonomic to all products and work environments – from a single work piece to serial production.

Additionally, it allows complete control of heights and assembly forces while protecting the movement. Thus you receive a perfect and repeatable hands allocation.

Problems during the production are identifiable, trackable, analyzable and quantifiable. PAViX hand-setting device delivers reliable data regarding productivity and quality defects.

Automatic regulation of height at assembling (stroke 7 mm, precision +/- 5 μm)
Force measurement: EM 100 N, precision +/- 2% EM
Measuring plate: outside Ø 45 mm, inside Ø 3.22 mm

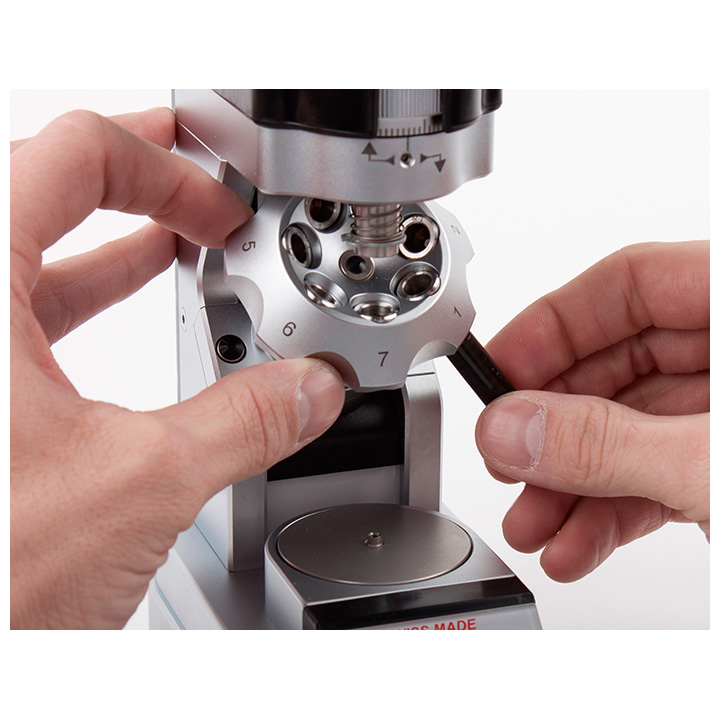

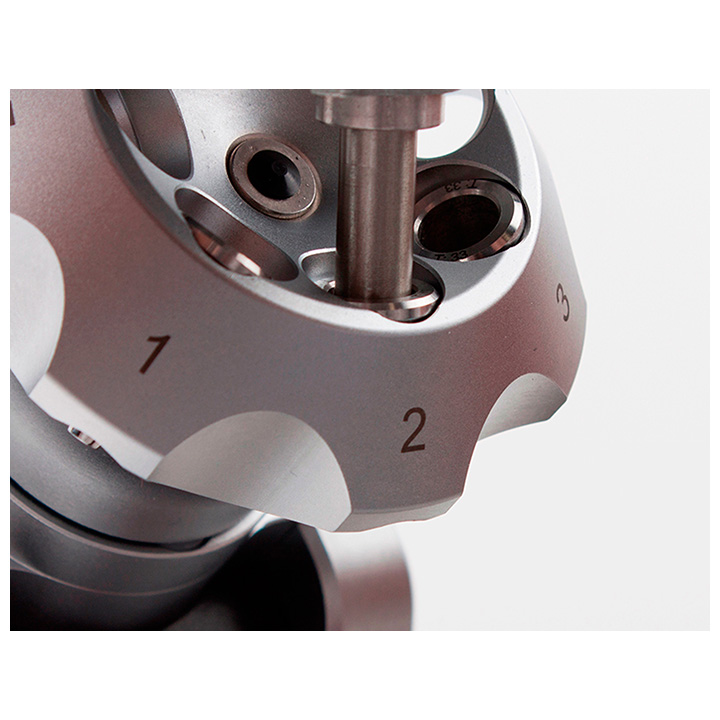

Barrel with 7 inserts, serves as navigation ring
Memory space for up to 999 individual hand-setting programs
Complete traceability of the production (memory > 1 work week)

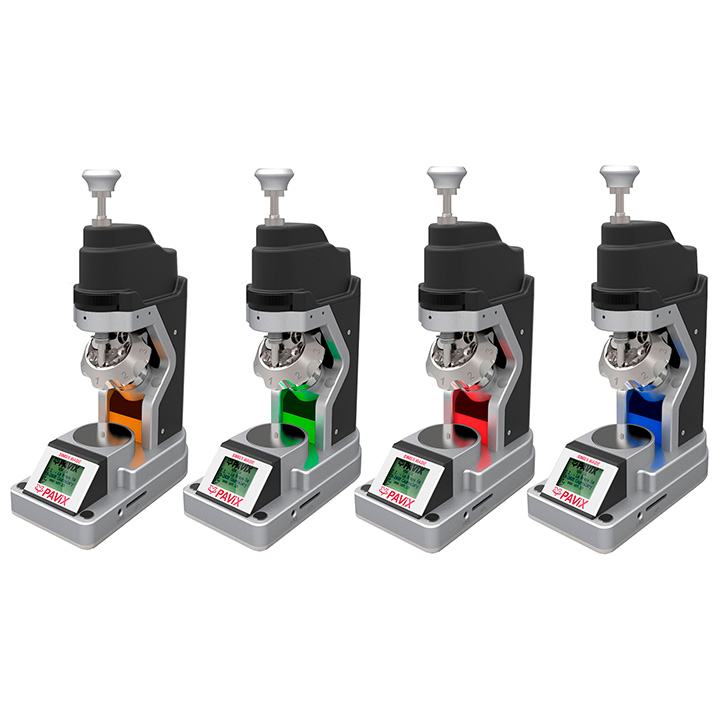

Information system with 3 different colors shows status of current process
Acoustic alarm when overhauling the pre-set force

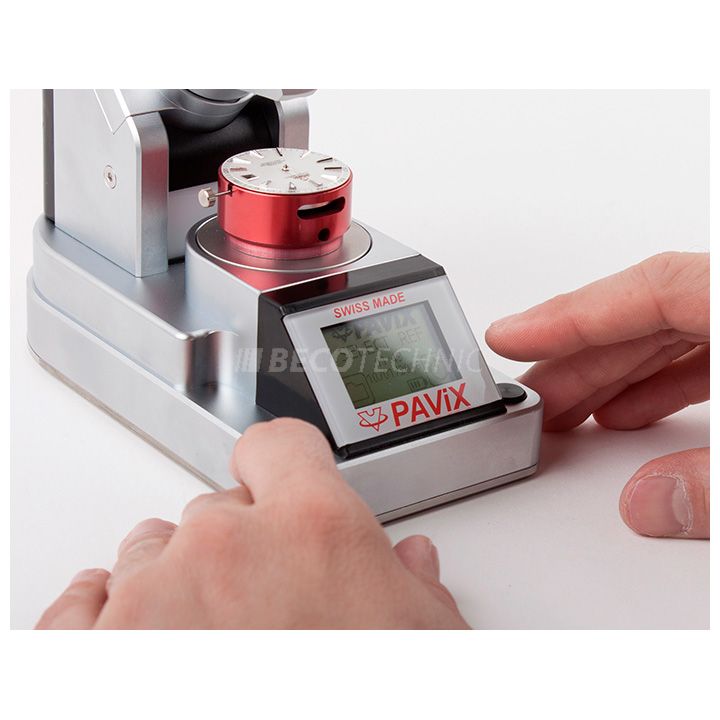

Easy readable LCD screen

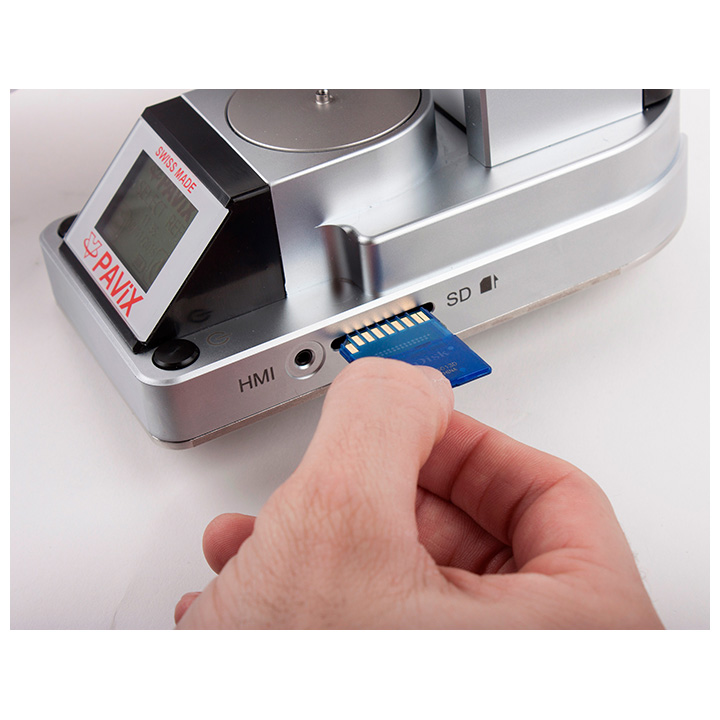

Integrated SD card reader
Bluetooth interface for connection with barcode scanner
Battery lifetime (wireless): > 10 h
Elementary and intuitive operation
Suitable for VOH standard movement holders
Fast changing of different inserts
Fast setting of the desired program
Wide range of applications: up to 7 different hands per watch
Wide range of steel and Delrin inserts available

Dimensions (H x W x D): 280,0 x 80,0 x 165,0 mm
Product area: Equipment & machines
Reference: 26.01020
Weight (kg): 2
