XPRO 1
One working side. The compact configuration of the platform.
Go to the machine
Micromecalp XPRO
All-in-one workstation
XPRO Series
Configurable. Ultra-flexible. One workstation for every operation.
Go straight to the machines FAQs Request further information
Four models.
From the compact XPRO 1 to the fully equipped XPRO 2 Touch.
XPRO 2
The larger base plate, with room for a second module (belt satin-finishing system) next to the spindle.
Go to the machine
XPRO 1 Touch
The compact configuration with one working side, extended by a full-featured OLED 4K touch control panel as well as convenience functions such as Wi-Fi and the use of profiles.
Go to the machine
XPRO 2 Touch
The larger platform with two working sides, extended by a full-featured OLED 4K touch control panel as well as convenience functions such as Wi-Fi and the use of profiles.
Go to the machineAvailable configurations (right-handed / left-handed)

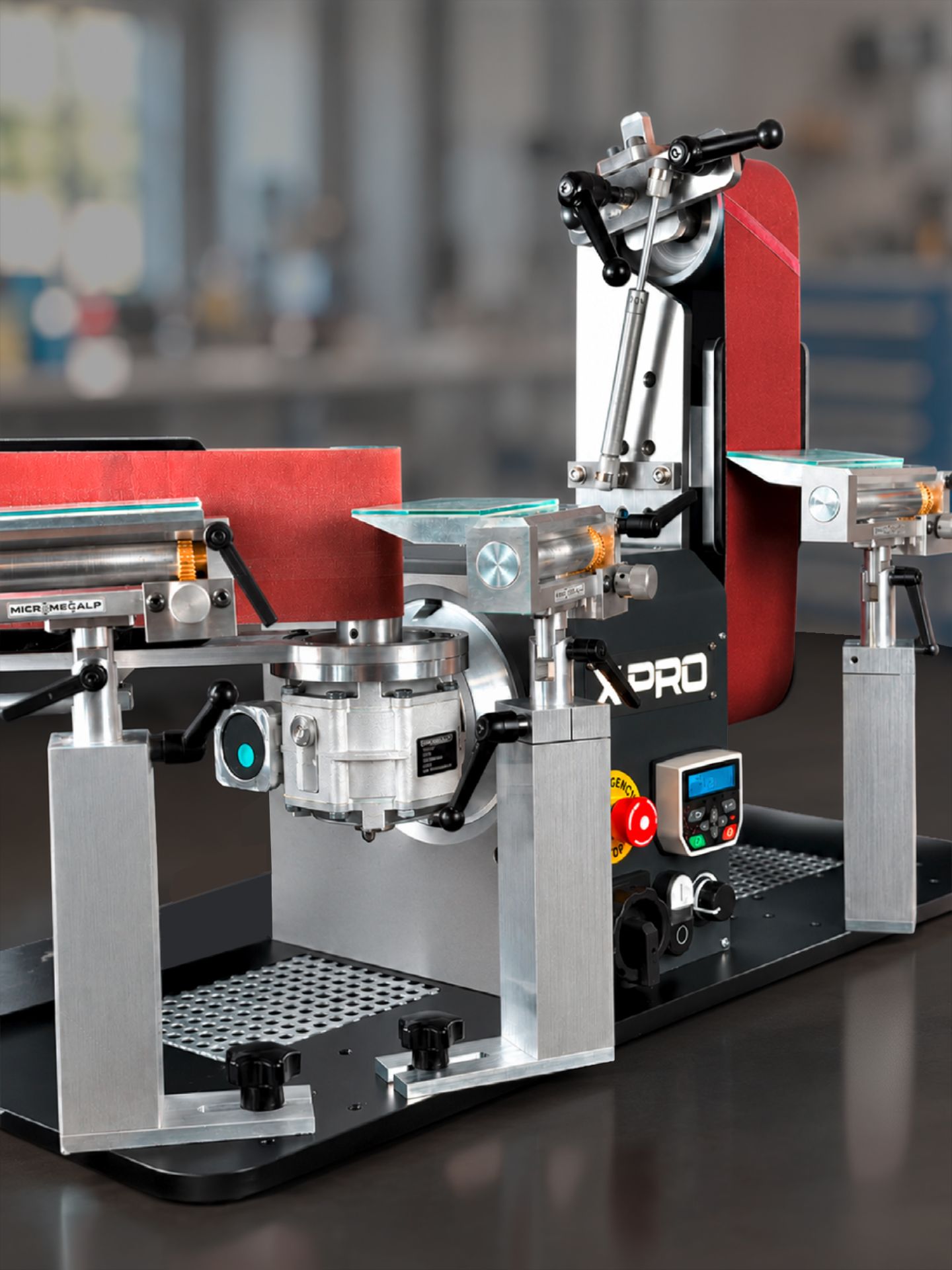

XPRO 2. Two sides. One machine.
A satin-finishing side and a high-speed precision side on the same frame.
Belt side: Vertical and horizontal belt arms
Satin-finishing and brushing grits, with the arm in the position the workpiece requires. You configure your XPRO to suit your work steps, and not the other way round!

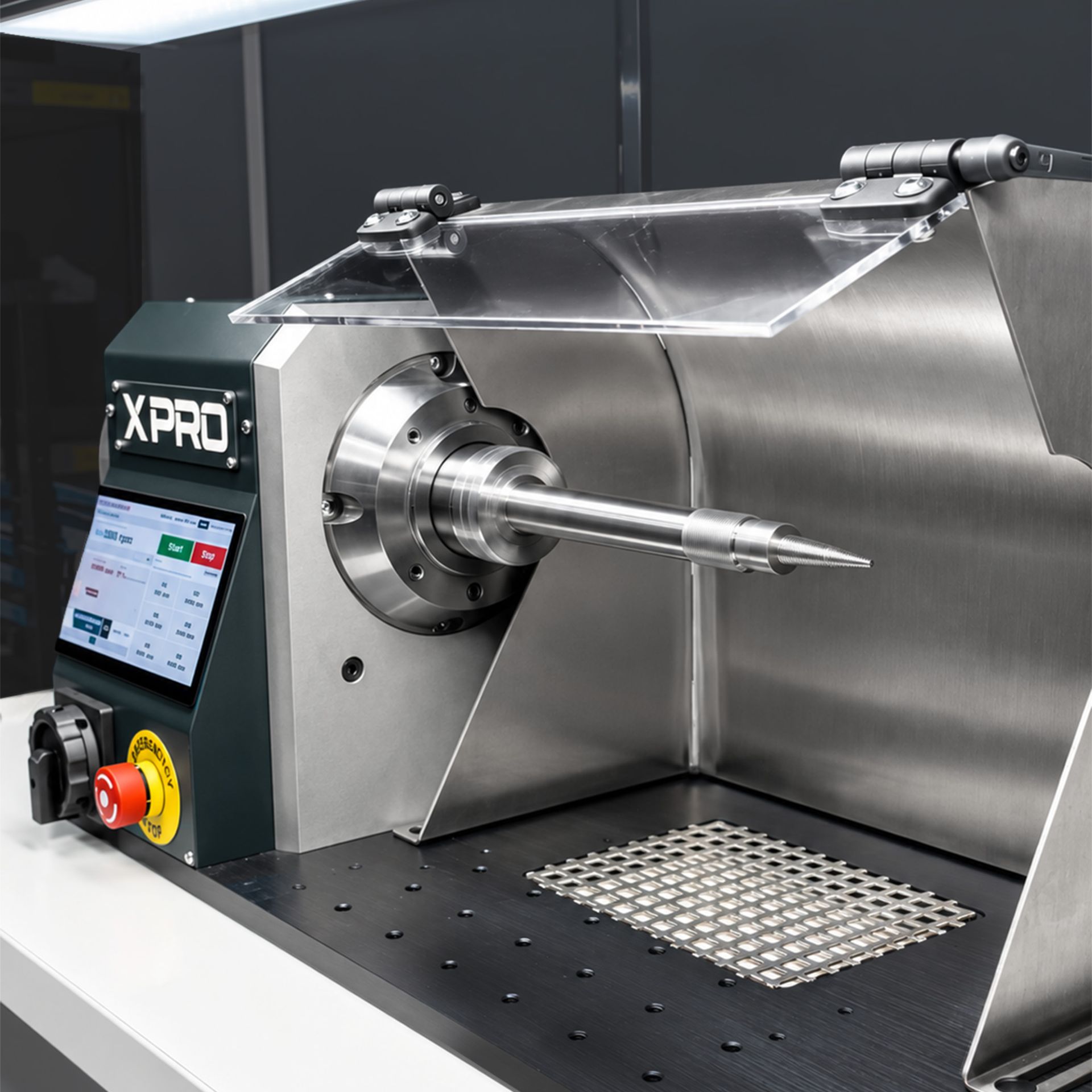

Precision side: The Universal MICROMECALP Shaft (UMS)
A forged precision spindle on high-precision bearings, made of hardened and ground steel. Every accessory of our X series fits on it.
Both at the same time: Configured to suit your workpieces
Lapping and vertical satin finishing, polishing, double satin finishing, horizontal belt, double belt. The modules change, the machine underneath does not.
Direct drive, fully mastered.
1.500 WDirect-drive spindle
4.500 rpmup to 6.000 rpm (optional)
49 dB(A)at 2.250 rpm
Built to last forever.
15 mm aluminium base plate
Aerospace grade, black anodised and hard-coated for high scratch resistance, ground and with two bores for the extraction.
MICROMECALP spindle motor
Forged spindle shaft on high-precision bearings, hardened, ground and balanced in-house. Compatible with every accessory of the X series.
Steel frame
Built for stability and quiet operation (from 49 dB) with integrated air cooling for round-the-clock continuous operation and an illuminated XPRO logo.
The all-in-one solution that you adapt to your workpieces.

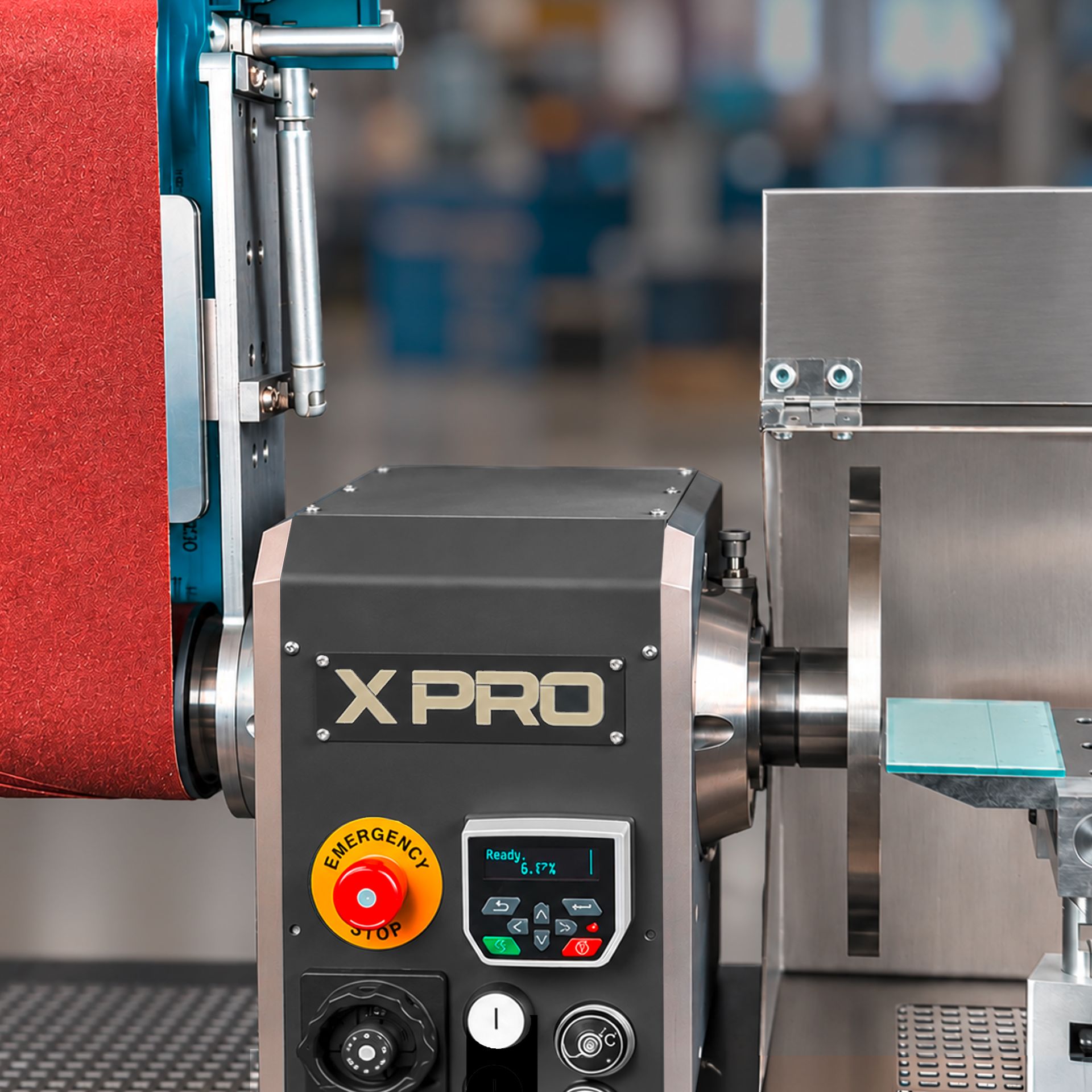

Lapping 240 mm, lapping 180 mm, lapping 75 mm, round-shape lapping, vertical satin finishing, polishing, double satin finishing, horizontal belt, double belt, anglage, circular graining and more.

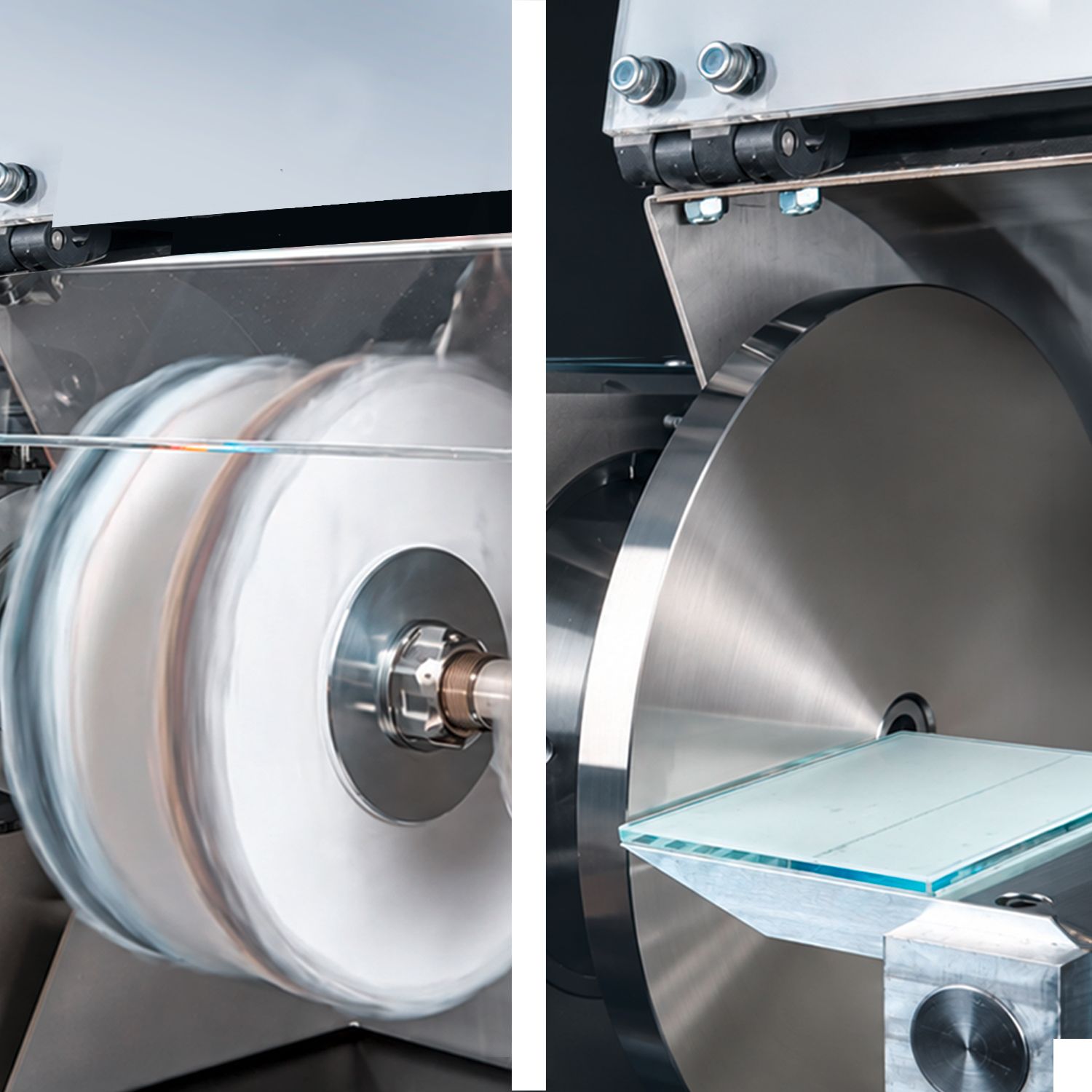

All modules can be changed in seconds.

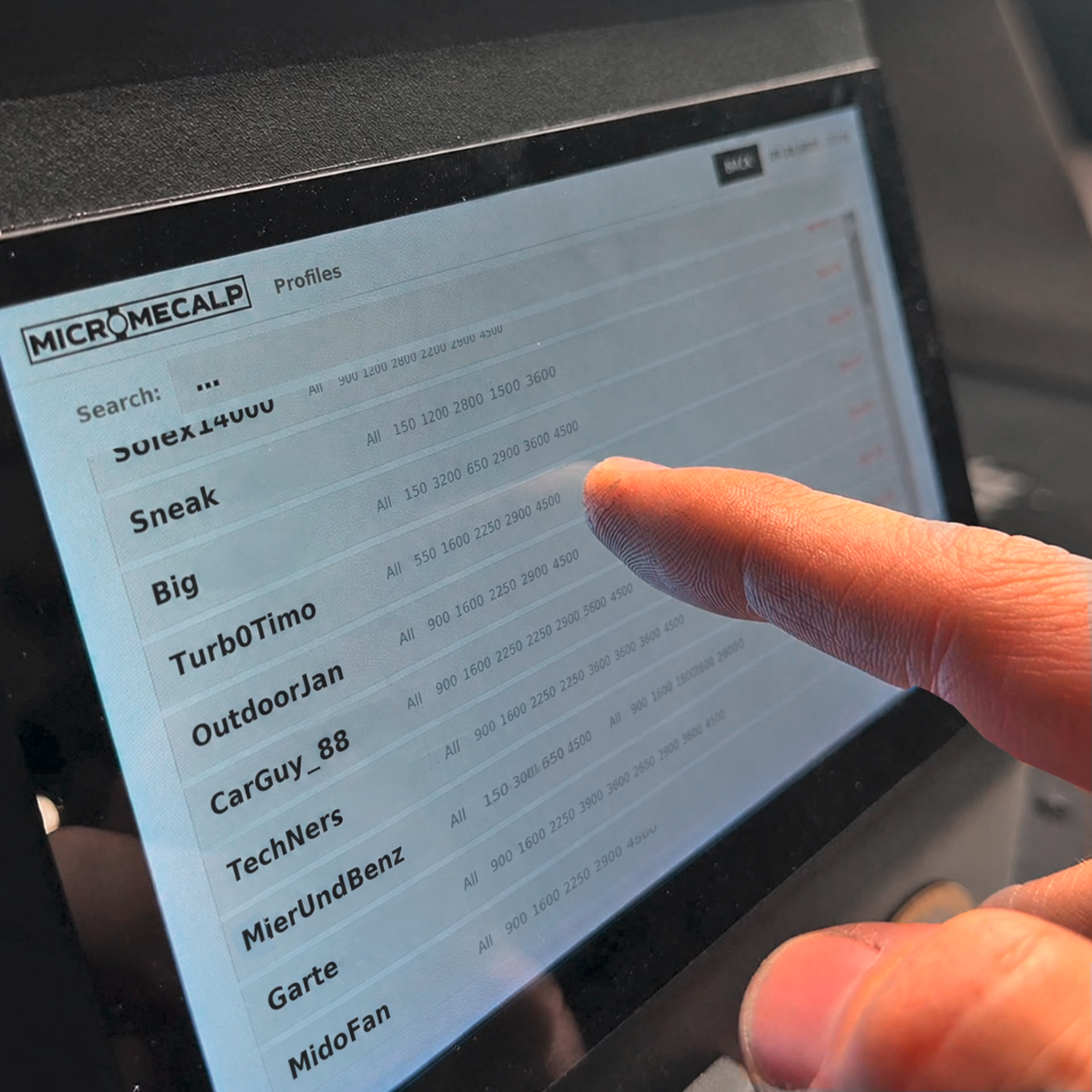

XPRO Touch · Profiles
A machine that remembers how you work.
A profile is a named set of six speeds. Once selected, the machine is set up, no matter who is standing at the workbench.
By employee
Every polisher keeps their own settings.
"Polisher no. 1 – David"
By watch reference
Repeat exactly the same finish across all your references.
"Oyster 114060 steel"
By customer part
Instantly ready again for the next production order. Guarantee your customers 100 % repeatability.
"Munstermann GmbH – clasp"
By tool & abrasive
Named after what it was tested with.
"Bracelet satin-finished DiamondCutP400"
From profile to speed, with a few taps.
- Tap PROFILEYour own profile list appears.
- Select oneYour settings are displayed. Ready to work.
- Tap a settingIt immediately becomes the target speed.
- START, then CONFIRM?Two touches, so that it never starts up by accident.
Choose the process: Four modes, each with its own limit.
Belt finishing up to 1.500 rpm, lapping up to 1.800, polishing and manual operation up to 4.500. A value above the limit is automatically capped.
Work: Six speeds, one tap away.
The profile occupies M1 to M6. Tap one, and the spindle goes straight there, with actual speed and motor load in real time.
Extraction: It follows the spindle.
With SYNC activated, the extraction starts and stops with the machine. The power is adjustable from 10 to 100 %, and there is also a whisper preset and a display of the air flow in m³/h.
Remote service & maintenance
With remote access activated, the machine tells us how it is running. That changes what a service call looks like.
Remote support
Call us, and we already see what you see: which profile, which tools, which settings, temperatures and more. Most questions are settled by phone, without a visit.
Software updates
New features are loaded via Wi-Fi in about a minute and checked for integrity before installation. Your settings, memory and profiles remain untouched.
Proactive maintenance (PILOT)
Service is planned according to the actual operating hours and load of your machine, not according to the calendar.
You stay in control.
Remote access can be switched off
Remote access can be switched off at the machine if you do not want to use the remote services. The Micromecalp Service (Munich) has read-only access.
Works offline
Wi-Fi is only needed for updates and monitoring.
Profiles are retained
Unaffected by software updates.
"First steps" in 3 minutes
A guided tutorial in 14 steps to get started.
Seven languages
From English to 日本語.
Technical data
| Configuration | Configurable all-in-one workstation |
|---|---|
| Power supply | 208 V–220 V · 1 ph / 3 ph · 50/60 Hz |
| Motor | MICROMECALP direct-drive spindle, 1,5 kW (high-torque power profile) |
| Speed | Variable, 50 to 4.500 rpm (up to 6.000 rpm optional) |
| Noise level | 49 dB(A) at 2.250 rpm · 53 dB(A) at 2.800 rpm · 58 dB(A) at maximum |
| Control unit | XPRO 1/2 Touch: full-featured OLED 4K touch control panel XPRO 1/2: On/off switch and power relay · Forward/reverse · Speed adjustment · Emergency stop |
| Base plate | 15 mm aerospace-grade aluminium, black anodised and hard-coated, ground, with two bores for the dust extraction |
| Frame | Made of steel, with integrated air cooling and illuminated XPRO logo |
| Belt side (left) | Compatible with belt arms and accessories |
| Precision side (right) | Universal MICROMECALP Shaft, precision spindle on high-precision bearings, made of hardened and ground steel |
| Accessory compatibility | All accessories of the X series |
| Dimensions & weight | XPRO 2: 1.000 × 400 × 600 mm – 79 kg XPRO 1: 600 × 400 × 600 mm – 62 kg |
Accessory Categories for Micromecalp XPRO
⬤ Available
⬤ Delivery as soon as possible
⬤ Not available
Limited orderability - Please log in
TIP
NEW
%
| Art no. | Marke | Type | Reference | Eigenschaften | Suitable for | Price | Quantity | Commission no. | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Art no.
|
Marke
Micromecalp
|
Type
Finishing machine
|
Reference
XPRO 2 Analog
|
Eigenschaften
Particularly long, Modularly expandable, Without accessories
|
Suitable for
Grinding, Lapping, Satinize, Polishing
|
⬤ Available ⬤ Delivery as soon as possible ⬤ Not available |
Loading...
|
Add to shopping cart Log in & Order | |||
|
Art no.
|
Marke
Micromecalp
|
Type
Finishing machine
|
Reference
XPRO 1 Analog
|
Eigenschaften
Particularly long, Modularly expandable, Without accessories
|
Suitable for
Grinding, Lapping, Satinize, Polishing
|
⬤ Available ⬤ Delivery as soon as possible ⬤ Not available |
Loading...
|
Add to shopping cart Log in & Order | |||
|
Art no.
|
Marke
Micromecalp
|
Type
Finishing machine
|
Reference
XPRO 2 Touch
|
Eigenschaften
Wi-Fi, Particularly long, Modularly expandable, Without accessories, Profiles, Display
|
Suitable for
Grinding, Lapping, Satinize, Polishing
|
⬤ Available ⬤ Delivery as soon as possible ⬤ Not available |
Loading...
|
Add to shopping cart Log in & Order | |||
|
Art no.
|
Marke
Micromecalp
|
Type
Finishing machine
|
Reference
XPRO 1 Touch
|
Eigenschaften
Wi-Fi, Particularly long, Modularly expandable, Without accessories, Profiles, Display
|
Suitable for
Grinding, Lapping, Satinize, Polishing
|
⬤ Available ⬤ Delivery as soon as possible ⬤ Not available |
Loading...
|
Add to shopping cart Log in & Order |
⬤ Available
⬤ Delivery as soon as possible
⬤ Not available
Limited orderability - Please log in
TIP
NEW
%
| Art no. | Marke | Type | Reference | Eigenschaften | Suitable for | Price | Quantity | Commission no. | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Art no.
|
Marke
Micromecalp
|
Type
Polishing unit
|
Reference

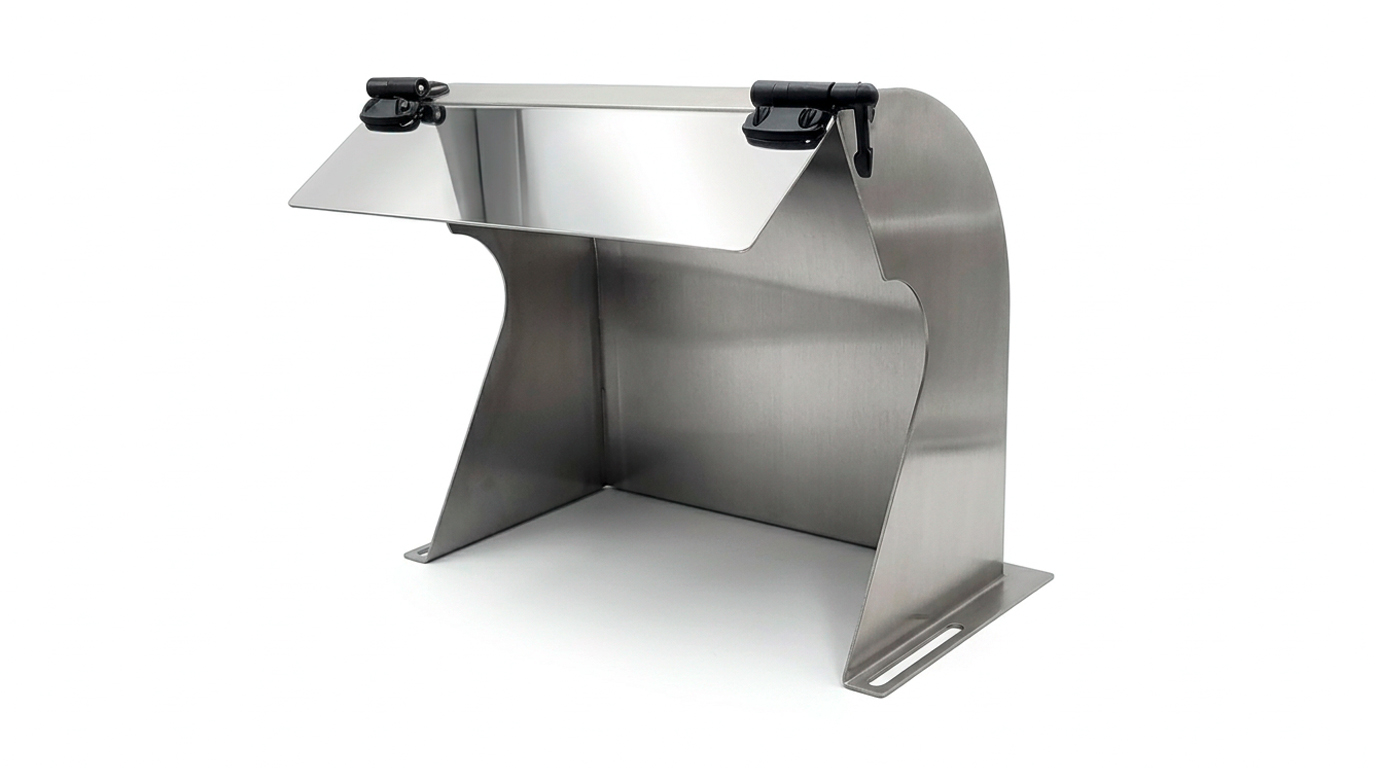

Polishing Hood
|
