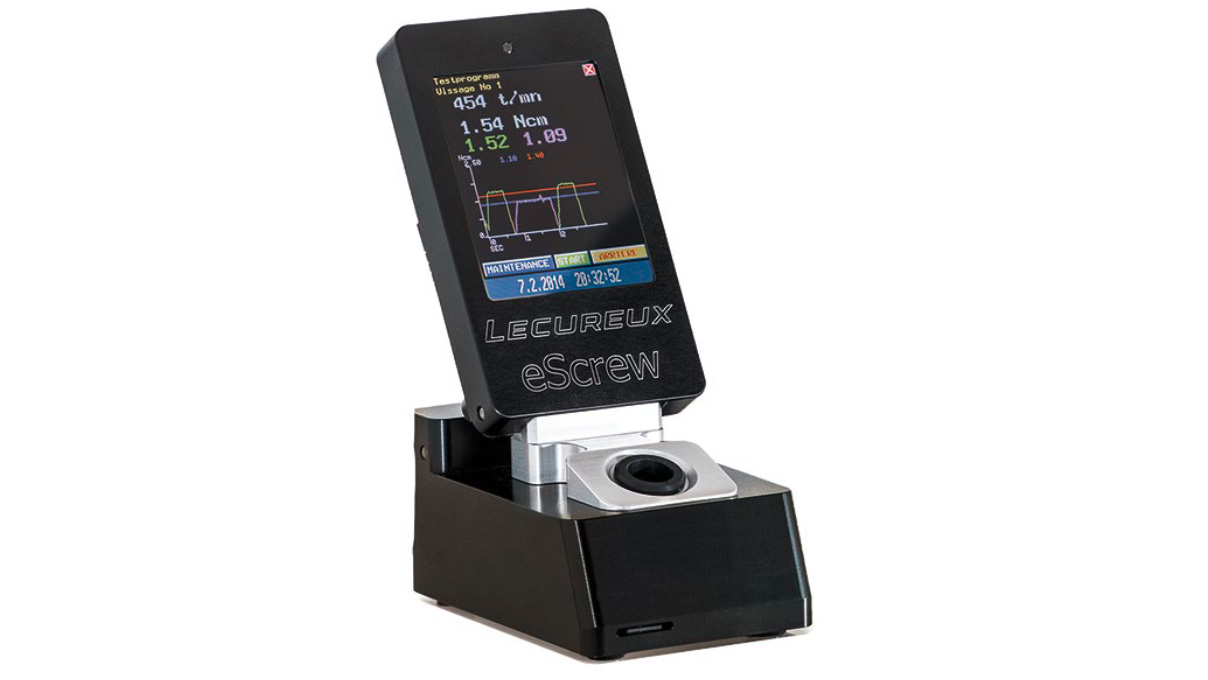

Lecureux eScrew Control unit for electric screwdrivers

Product information "Lecureux eScrew Control unit for electric screwdrivers"

The system offers a variety of customizable programs for different applications such as screwing, tightening and measuring. It supports various sub-processes, including screwing, tapping, positioning, screw holding tests, loosening and tightening. A central function is torque monitoring and measurement, whereby measurement curves and limit values can be displayed.

Process data acquisition is another important aspect of the system. It enables data transfer to a PC or network and data storage on an SD card. An integrated user management system ensures efficient organization.

The system also offers the option of printing data via a serial interface. This combination of versatile application possibilities, precise data acquisition and flexible output options makes the system a powerful tool for various industrial requirements.

Functions

Several languages available: FR/DE/EN/IT
Selectable units of measurement
End of cycle indicator light (depending on the screwdriver)
Control via Ethernet, RS232 or MiniDIN8
Automatic screwdriver recognition
Vacuum connection
Activatable acoustic signal transmitter
microSD card reader
Pen and pen holder
Display with ambient light compensation

Details

Colour: Black
Dimensions (H x W x D): 165,0 x 105,0 x 70,0 mm
Display: TFT Touch screen
Material: Aluminum
Power supply: 110 - 230 V
Product area: Equipment & machines
Reference: eScrew
Suitable for: Control , Screwing and unscrewing , TE-100 , TE-120 , TE-429 , TE-531 , TE-531- , TE-626 , Winding watches
Temperature: 0 to +40 °C
Typ: Control device
Weight (kg): 1.1

Show more

Name

Beco Technic GmbH

Address

Hermsdorfer Str. 5

21502 Geesthacht

Germany

E-Mail

[email protected]

Phone

+49 4152-80960

Downloads "Lecureux eScrew Control unit for electric screwdrivers"

Download 219900_de_fr

Product number: 219900

Brand: Lecureux

Sales unit: 1

Show special conditions

Prices incl. VAT plus shipping costs

Special conditions and scale prices

Quantity	Unit price	Discount	Your purchase price

Included in the following categories

Goldsmithing

Lecureux screwdrivers & accessories

Show more

Recommendations

Waldmann Taneo TND 1400 luminaire, 5000 K, opal white screen, short arm Art-Nr. 307735

Show special conditions

Bergeon 5395-75-B casing cushion, gel, white, Ø 75 mm Art-Nr. 201667

Show special conditions

Witschi ProofMaster Pro water resistance tester with results memory Art-Nr. 313939

Show special conditions

Rotary base with 12 Ergo screwdrivers, standard taper, Ø 0,6 - 3 mm Art-Nr. 205957

Show special conditions

Tweezers, serrated grips, with special shaped cup ends coated with PTFE for protection, length 145 mm Art-Nr. 312275

Show special conditions

Jooltool pearl vise Art-Nr. 310508

Show special conditions

Pearl holder, nickel plated hole Ø approx. 1,2-6,4 mm Art-Nr. 205360

Show special conditions

Dispenser for finger cots, acrylic, large Art-Nr. 211942

Show special conditions

VOH Armrests short, 3D adjustable, black, optional equipment for Ergolift Evolution (Ergo Suite, swiss patent), maximum load 10 kg Art-Nr. 309744

Show special conditions

VOH Armrests, length dynamic from 280 - 350 mm, 3D adjustable, black, special equipment for Ergolift Evolution (Ergo Suite, swiss patent), maximum load 10 kg Art-Nr. 309737

Show special conditions

Accessories

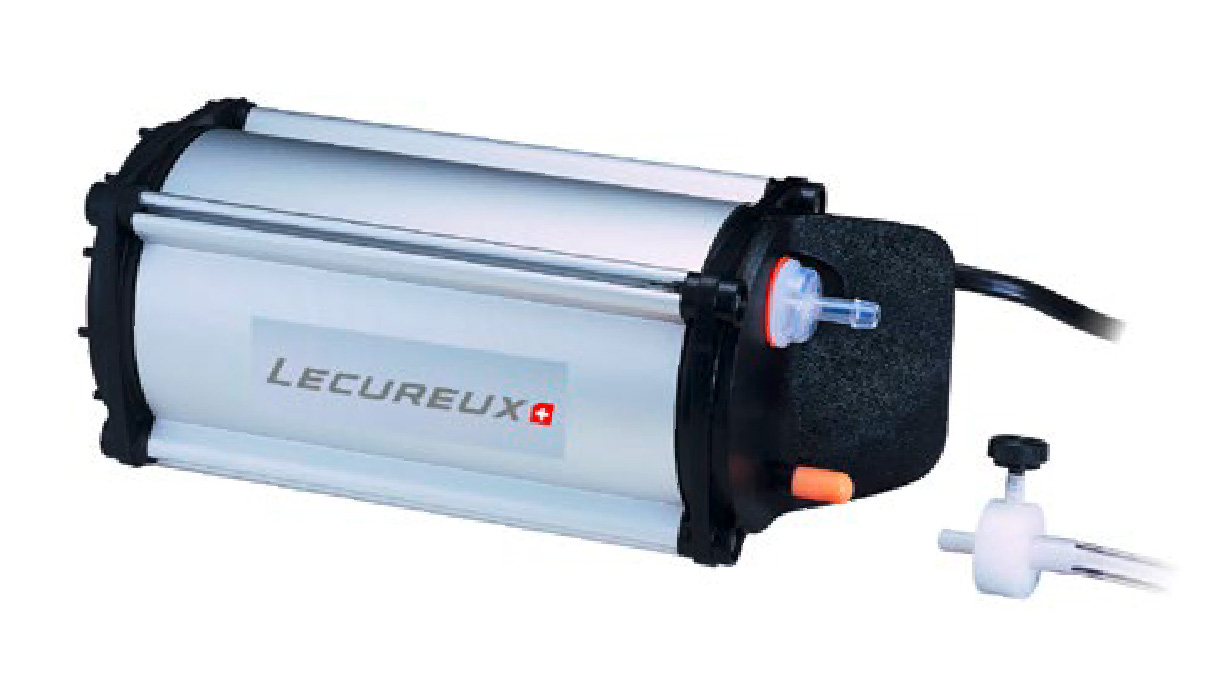

Lecureux SP302SA-V Vacuum pump, 230 V Art-Nr. 219986
